- register(componentClasses)注册配置类
-
- AnnotatedBeanDefinitionReader的register(componentClasses)
-
- AnnotatedBeanDefinitionReader的doRegisterBean注册配置类
- refresh刷新
-
- prepareRefresh预处理
- obtainFreshBeanFactory获得BeanFactory
-
- refreshBeanFactory
- prepareBeanFactory预处理BeanFactory
- invokeBeanFactoryPostProcessors调用BeanFactory后置处理器
register(componentClasses)注册配置类
前面我们讲了注解读取器和类扫描器创建完成了，接下来就是进行我们传入的配置类解析，其实配置类可以传多个，因为参数是一个可变长数组：
@Override
public void register(Class<?>... componentClasses) {
Assert.notEmpty(componentClasses, "At least one component class must be specified");
this.reader.register(componentClasses);
}
AnnotatedBeanDefinitionReader的register(componentClasses)
public void register(Class<?>... componentClasses) {
for (Class<?> componentClass : componentClasses) {
registerBean(componentClass);
}
}
public void registerBean(Class<?> beanClass) {
doRegisterBean(beanClass, null, null, null, null);
}
AnnotatedBeanDefinitionReader的doRegisterBean注册配置类
这里是完成了一个配置类的注册。首先根据配置类创建一个注解通用bean定义AnnotatedGenericBeanDefinition ，然后进行条件判断，从bean定义解析范围，并设置范围，然后获得bean的名字，处理通用注解，比如@Lazy，@Primary，@DependsOn等。如果有自定义BeanDefinitionCustomizer的话，就会进行回调。最后将bean名字和bean定义封装成BeanDefinitionHolder，方便处理，同时会根据注解的代理信息看是否要进行代理，最后注册到注册器里。
private <T> void doRegisterBean(Class<T> beanClass, @Nullable String name,
@Nullable Class<? extends Annotation>[] qualifiers, @Nullable Supplier<T> supplier,
@Nullable BeanDefinitionCustomizer[] customizers) {
AnnotatedGenericBeanDefinition abd = new AnnotatedGenericBeanDefinition(beanClass);//封装成注解bean定义
if (this.conditionEvaluator.shouldSkip(abd.getMetadata())) {
//是否满足条件
return;
}
abd.setInstanceSupplier(supplier);//设置bean创建的回调
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(abd);//解析范围元数据
abd.setScope(scopeMetadata.getScopeName());//设置范围
String beanName = (name != null ? name : this.beanNameGenerator.generateBeanName(abd, this.registry));//获取bean名字
//处理通用注解Lazy Primary DependsOn Role Description
AnnotationConfigUtils.processCommonDefinitionAnnotations(abd);
if (qualifiers != null) {
for (Class<? extends Annotation> qualifier : qualifiers) {
if (Primary.class == qualifier) {
abd.setPrimary(true);
}
else if (Lazy.class == qualifier) {
abd.setLazyInit(true);
}
else {
abd.addQualifier(new AutowireCandidateQualifier(qualifier));
}
}
}
if (customizers != null) {
//对bean定义可以自定义一些操作
for (BeanDefinitionCustomizer customizer : customizers) {
customizer.customize(abd);
}
}
//封装成BeanDefinitionHolder
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(abd, beanName);
definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);//可能要返回代理
BeanDefinitionReaderUtils.registerBeanDefinition(definitionHolder, this.registry);//注册
}
这里的一些方法展开暂时不讲，因为涉及很多细节，现在能知道这个做了点什么就可以了，主要知道他创建了一个AnnotatedGenericBeanDefinition把配置类的注解都获取到了，然后放进bean定义中，最后将bean定义注册到注册器里。
refresh刷新
这个才是重要的地方，我们一个个方法来分析下，重点的会将细节，不是重点的就大致说下干嘛用的。
prepareRefresh预处理
设置一些参数和监听器。
protected void prepareRefresh() {
// Switch to active.
this.startupDate = System.currentTimeMillis();
this.closed.set(false);
this.active.set(true);
if (logger.isDebugEnabled()) {
if (logger.isTraceEnabled()) {
logger.trace("Refreshing " + this);
}
else {
logger.debug("Refreshing " + getDisplayName());
}
}
initPropertySources();
getEnvironment().validateRequiredProperties();
// Store pre-refresh ApplicationListeners...
if (this.earlyApplicationListeners == null) {
this.earlyApplicationListeners = new LinkedHashSet<>(this.applicationListeners);
}
else {
this.applicationListeners.clear();
this.applicationListeners.addAll(this.earlyApplicationListeners);
}
this.earlyApplicationEvents = new LinkedHashSet<>();
}
obtainFreshBeanFactory获得BeanFactory
进行刷新标志的设置，然后返回DefaultListableBeanFactory对象。
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
refreshBeanFactory();
return getBeanFactory();
}
refreshBeanFactory
原子操作，支持单线程刷新，设置一个序列化ID。
@Override
protected final void refreshBeanFactory() throws IllegalStateException {
if (!this.refreshed.compareAndSet(false, true)) {
throw new IllegalStateException(
"GenericApplicationContext does not support multiple refresh attempts: just call 'refresh' once");
}
this.beanFactory.setSerializationId(getId());
}
prepareBeanFactory预处理BeanFactory
对BeanFactory进行预处理，比如设置加载器，表达式解释器，添加BeanPostProcessor后置处理器ApplicationContextAwareProcessor，此时才是第一个后置处理器，然后忽略一些接口，然后是一些依赖对象设置，然后又添加了ApplicationListenerDetector后置处理器。最后注册一些单例，比如环境，系统属性啊。
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
// Tell the internal bean factory to use the context's class loader etc.
beanFactory.setBeanClassLoader(getClassLoader());
beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));
//添加后置处理器
beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
//忽略的接口
beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
//依赖对象的设置
// BeanFactory interface not registered as resolvable type in a plain factory.
// MessageSource registered (and found for autowiring) as a bean.
beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
beanFactory.registerResolvableDependency(ResourceLoader.class, this);
beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
beanFactory.registerResolvableDependency(ApplicationContext.class, this);
// Register early post-processor for detecting inner beans as ApplicationListeners.
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));//又一个后置处理器
// Detect a LoadTimeWeaver and prepare for weaving, if found.
if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
// Set a temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
// Register default environment beans.注册一些单例
if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
}
if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
}
if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
}
}
invokeBeanFactoryPostProcessors调用BeanFactory后置处理器
这个是关键，开始要执行后置处理器，来处理我们的bean定义了。
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());
if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
}
主要是PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());里面涉及到很多东西，开始解析我们bean定义，生成相应的处理器进行处理，这个我们后面一篇说吧。我们现在知道了注册配置类，仅仅是对配置类做一些注解的解析，然后封装成bean定义放入注册器里。

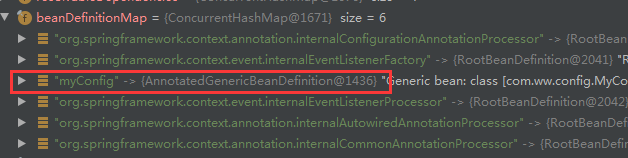

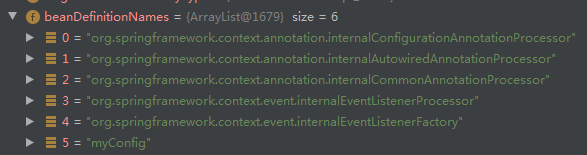

看看此时我们的beanFactory里面的bean定义：
后置处理器：
好了，今天就到这里了，希望对学习理解有帮助，大神看见勿喷，仅为自己的学习理解，能力有限，请多包涵。
