07、Tomcat源码:tomcat组件之Server

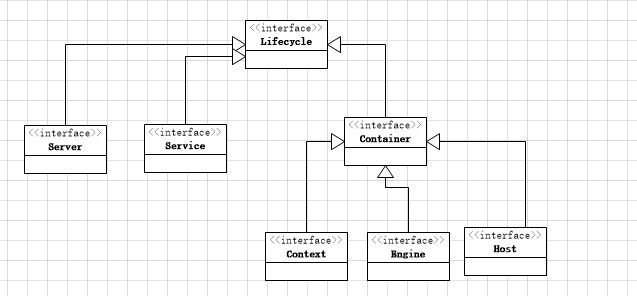

从tomcat文档,或者更具上篇我们分析的Lifecycle继承关系或者查看Server.xml配置文件可以知道,在Lifecycle继承链下tomcat有几大组件,Server、Service、Context、Engine、Host,当然Lifecycle继承链下还有其他组件。

*

从分析Catalina那篇可以知道,Catalina的方法会调用Server的对应的start、stop等等方法,

而从上篇知道LifecycleBase会有startInternal等回调方法,通观StandServer可以发现有XXInternal方法,这篇主要关注的就是这几个方法。

startInternal和await方法:

为什么把这两个方法放一起,可以回顾下Catalina那篇,Catalina的Start方法

public void start() {

        getServer().start();
   ……………

                getServer().destroy();
     ………..
//BootStrap调用Catalina setAwait设置await为true
        if (await) {
            await(); // getServer().await();
            stop();
        }
}

等分析完Server的startInternal方法和await方法可以回头总结下Catalina的方法。

startInternal 方法:

protected void startInternal() throws LifecycleException {
//触发CONFIGURE_START_EVENT事件,注册这个事件的监听器会调用
        fireLifecycleEvent(CONFIGURE_START_EVENT, null);
        setState(LifecycleState.STARTING);
//调用globalNamingResources的start
        globalNamingResources.start();

        //调用services的start方法
        synchronized (servicesLock) {
            for (int i = 0; i < services.length; i++) {
                services[i].start();
            }
        }
}

这里面有几个疑问,globalNamingResources和services的什么时候创建的,Digester那篇分析可以知道,在Catalian.load方法中给Digester设置rule,

然后解析来生成对象链。现在我们回头去关注跟globalNamingResources和services有关的部分

protected Digester createStartDigester() {
        ………….
        …………
//Server部分,创建StandardServer对象,调用Catalina的setServer设值
digester.addObjectCreate("Server",
                                 "org.apache.catalina.core.StandardServer",
                                 "className");
        digester.addSetProperties("Server");
        digester.addSetNext("Server",
                            "setServer",
                            "org.apache.catalina.Server");
// Server/GlobalNamingResources部分,创建NamingResourcesImpl对象调用StandardServer的setGlobalNamingResources设值,并且给NamingResourcesImpl对象设值Server.xml上相对应的properties
 digester.addObjectCreate("Server/GlobalNamingResources",
                                 "org.apache.catalina.deploy.NamingResourcesImpl");
        digester.addSetProperties("Server/GlobalNamingResources");
        digester.addSetNext("Server/GlobalNamingResources",
                            "setGlobalNamingResources",
                            "org.apache.catalina.deploy.NamingResourcesImpl");
………………
…………..
// Server/Service部分, 创建StandardService,调用StandardService的addService方法设值
digester.addObjectCreate("Server/Service",
                                 "org.apache.catalina.core.StandardService",
                                 "className");
        digester.addSetProperties("Server/Service");
        digester.addSetNext("Server/Service",
                            "addService",
                            "org.apache.catalina.Service");
…………………………
}

现在简单看下上面提到的方法

public void setGlobalNamingResources
//设置globalNamingResources属性,出发PropertyChange事件
        (NamingResourcesImpl globalNamingResources) {

        NamingResourcesImpl oldGlobalNamingResources =
            this.globalNamingResources;
        this.globalNamingResources = globalNamingResources;
        this.globalNamingResources.setContainer(this);
        support.firePropertyChange("globalNamingResources",
                                   oldGlobalNamingResources,
                                   this.globalNamingResources);

}

public void addService(Service service) {
//添加新service进services数组,设置service的server属性
        service.setServer(this);

        synchronized (servicesLock) {
            Service results[] = new Service[services.length + 1];
            System.arraycopy(services, 0, results, 0, services.length);
            results[services.length] = service;
            services = results;

            if (getState().isAvailable()) {
                try {
            //启动service
                    service.start();
                } catch (LifecycleException e) {
                    // Ignore
                }
            }

            support.firePropertyChange("service", null, service);
        }

    }

现在回头看startInternal 方法,调用GlobalNamingResources和service的start方法。这两个对象后面可以分析,重点是StandardService,这篇主要看Server。

avwait方法:

启动一个ServerSocket,监听Catalina的stopServer方法发送的SHUTDWON,当监听到SHUTDOWN ,await方法将break while,停止阻塞。

回头看Catalina的start方法,大致逻辑,调用server Start方法,然后调server Awati方法keep main thread alive。

stopInternal方法(当将tomcat作为service的时候,停止服务将调用stopInternal方法):

protected void stopInternal() throws LifecycleException {

        setState(LifecycleState.STOPPING);
//触发CONFIGURE_STOP_EVENT事件
        fireLifecycleEvent(CONFIGURE_STOP_EVENT, null);

 //停止service
        for (int i = 0; i < services.length; i++) {
            services[i].stop();
        }
//停止globalNamingResources
        globalNamingResources.stop();

        stopAwait();//设置stopAwait为true
}

initInternal 方法和destroyInternal 方法:

initInternal方法:

protected void initInternal() throws LifecycleException {

        super.initInternal();
//注册StringCache为JMX
        onameStringCache = register(new StringCache(), "type=StringCache");

        // 注冊factory为JMX
        MBeanFactory factory = new MBeanFactory();
        factory.setContainer(this);
        onameMBeanFactory = register(factory, "type=MBeanFactory");

        //调用resource的init方法
        globalNamingResources.init();

        // Populate the extension validator with JARs from common and shared class loaders
        if (getCatalina() != null) {
            ClassLoader cl = getCatalina().getParentClassLoader();

            while (cl != null && cl != ClassLoader.getSystemClassLoader()) {
                if (cl instanceof URLClassLoader) {
                    URL[] urls = ((URLClassLoader) cl).getURLs();
                    for (URL url : urls) {
                        if (url.getProtocol().equals("file")) {
                            try {
                                File f = new File (url.toURI());
                                if (f.isFile() &&
                                        f.getName().endsWith(".jar")) {
                                    ExtensionValidator.addSystemResource(f);
                                }
                            } catch (URISyntaxException e) {
                                // Ignore
                            } catch (IOException e) {
                                // Ignore
                            }
                        }
                    }
                }
                cl = cl.getParent();
            }
        }
        // Initialize our defined Services
        for (int i = 0; i < services.length; i++) {
            services[i].init();
        }

destroyInternal 方法:

protected void destroyInternal() throws LifecycleException {
        //destroy service
        for (int i = 0; i < services.length; i++) {
            services[i].destroy();
        }
        // destroy  resource
        globalNamingResources.destroy();
        //注销onameMBeanFactory JMX
        unregister(onameMBeanFactory);
       //注销onameStringCache JMX
        unregister(onameStringCache);

        super.destroyInternal();
    }

总结:

当作为CMD start 启动时,start方法再调用service的star后会因为await阻塞,当CMD stop时,Server的await启动的ServerSocket会监听Catalina的stopServer方法发送的SHUTDOWN,当监听到SHUDOWN,while break,然后调用stop,destroy。

Bootstrap.init->Catalina.Load->Server.InitInternal,

CMD–start Bootstrap.main-> Catalina.Start->Server.StartInternal,

CMD–stop Bootstrap.main-> Catalina.StopServer导致start的阻塞while break->Server.StopInternal+Server.DestroyInternal,

当作为service的时候,

Bootstrap.init->Catalina.Load->Server.InitInternal,

Bootstrap.main->Catalina.Start->Server.StartInternal,

Bootstrap.main->Catalina.Stop->Server.StopInternal+Server.DestroyInternal,
